The Z7 index is the core data structure of IGEO7. A single 64-bit integer encodes everything needed to identify a cell: which base cell it belongs to, its resolution, and its exact position within the hierarchy.

Why a Hierarchical Index?​

Traditional geographic coordinate systems (lat/lng, UTM) identify a point on the Earth's surface. For spatial analysis at scale, you often need:

  • Aggregation: group fine-resolution observations into coarser cells
  • Neighbourhood queries: find all cells adjacent to a given cell
  • Spatial joins: map observations to a uniform grid

A hierarchical index like Z7 enables all of these in O(1) or O(r) time (where r is the resolution), without any geometry computation.

Structure​

A Z7 index is a 64-bit unsigned integer with this layout:

Bits 63–60  │  Bits 59–57  │  Bits 56–54  │  ...  │  Bits 2–0
────────────┼──────────────┼──────────────┼───────┼──────────
 Base cell  │   Digit 1    │   Digit 2    │  ...  │  Digit 20
  (4 bits)  │   (3 bits)   │   (3 bits)   │       │  (3 bits)
  • Base cell (4 bits): which of the 12 icosahedral pentagonal base cells (0–11) the cell belongs to
  • Resolution digits (20 × 3 bits): one digit per resolution level, value 0–6 for valid digits, 7 as an "end-of-resolution" sentinel

The 12 Base Cells​

IGEO7 starts from the 12 vertices of the icosahedron, which become the 12 pentagonal cells at resolution 0. All other cells at all resolutions are hexagons that subdivide the faces around these vertices.

This is fundamentally different from H3, which has 122 resolution-0 cells formed by a mixed aperture 4→3 pre-subdivision. IGEO7's simpler base gives it 5 additional resolution levels.

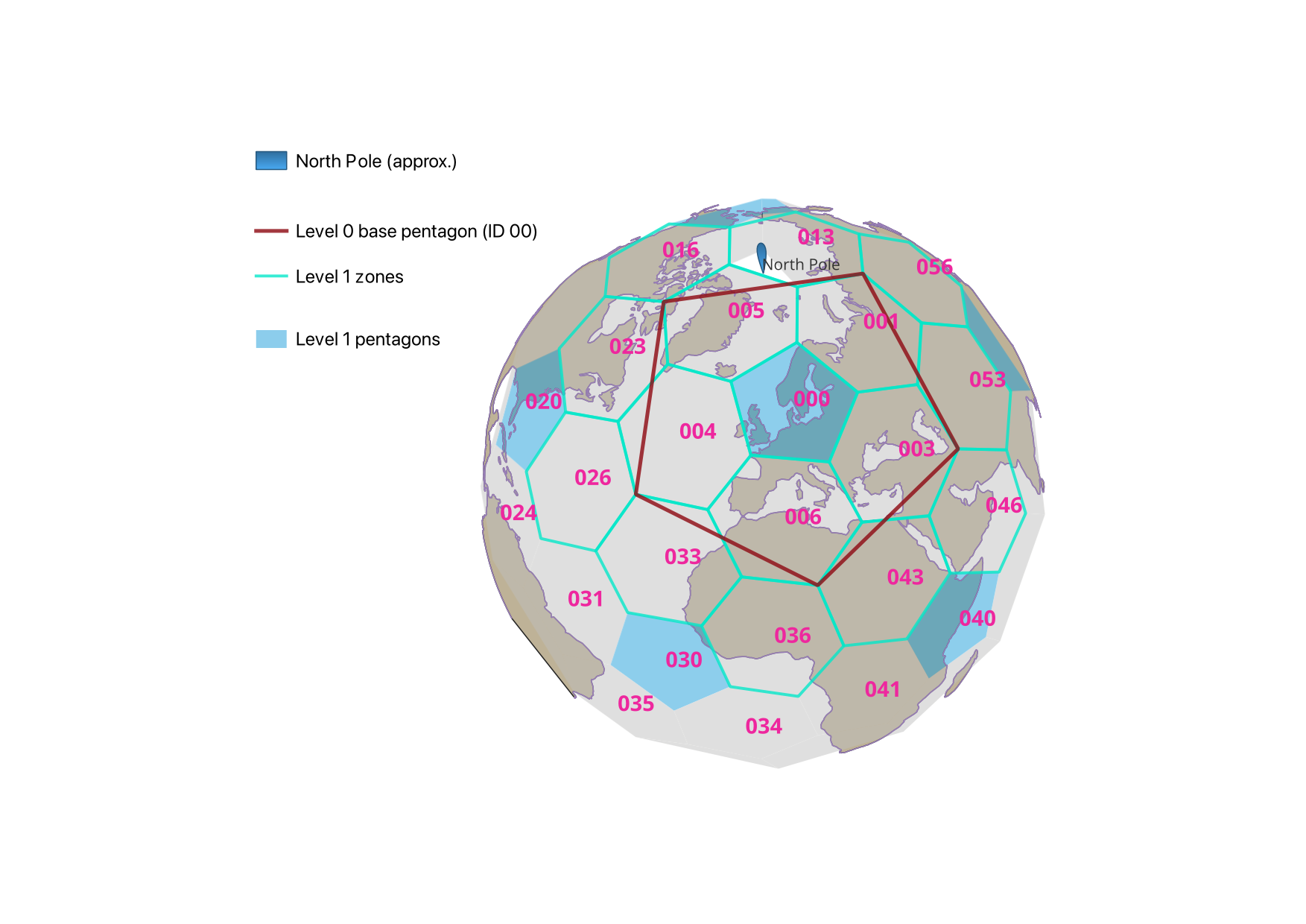

The 12 pentagonal base cells on the icosahedron

Aperture 7 Subdivision​

At each resolution step, every hexagonal cell is subdivided into 7 children:

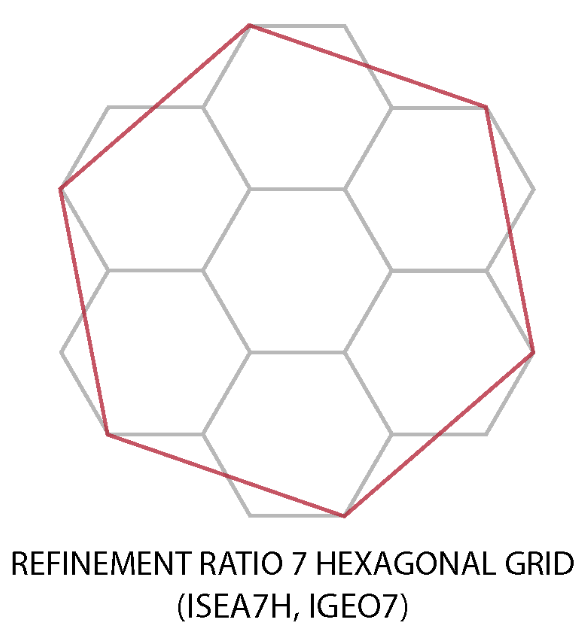

ISEA7H aperture-7 refinement showing parent cell subdivided into 7 children

  • Digit 0: centre child — directly below the parent centroid
  • Digits 1–6: six surrounding children, numbered in space-filling curve order

Pentagons are an exception: they have 6 children (1 centre + 5 surrounding), since pentagons have only 5 edges.

Reading a Z7 Index​

The Z7 string format "0800433" decodes as:

PartValueMeaning
08base cell 8one of the 12 icosahedron vertices
0digit 1 = 0centre child at resolution 1
0digit 2 = 0centre child at resolution 2
4digit 3 = 4child 4 at resolution 3
3digit 4 = 3child 3 at resolution 4
3digit 5 = 3child 3 at resolution 5

This cell is at resolution 5 (5 valid digits after the base cell).

Parent–Child Relationships​

Parent: remove the last digit.

z7_str = "0800433"
parent  = z7_str[:-1]   # "080043"  (resolution 4)

Children: append digits 0–6.

children = [z7_str + str(d) for d in range(7)]
# ["08004330", "08004331", ..., "08004336"]

This works identically on the integer representation via bit operations:

# Get parent (set last valid digit group to 0b111)
def get_parent(z7_int: int, resolution: int) -> int:
    shift = 57 - 3 * (resolution - 1)
    mask = ~(0x7 << shift)
    return (z7_int & mask) | (0x7 << shift)

The Space-Filling Curve​

The Z7 index order is not arbitrary — it defines a space-filling curve over the sphere. Cells that are adjacent in Z7 integer order tend to be spatially close. This property:

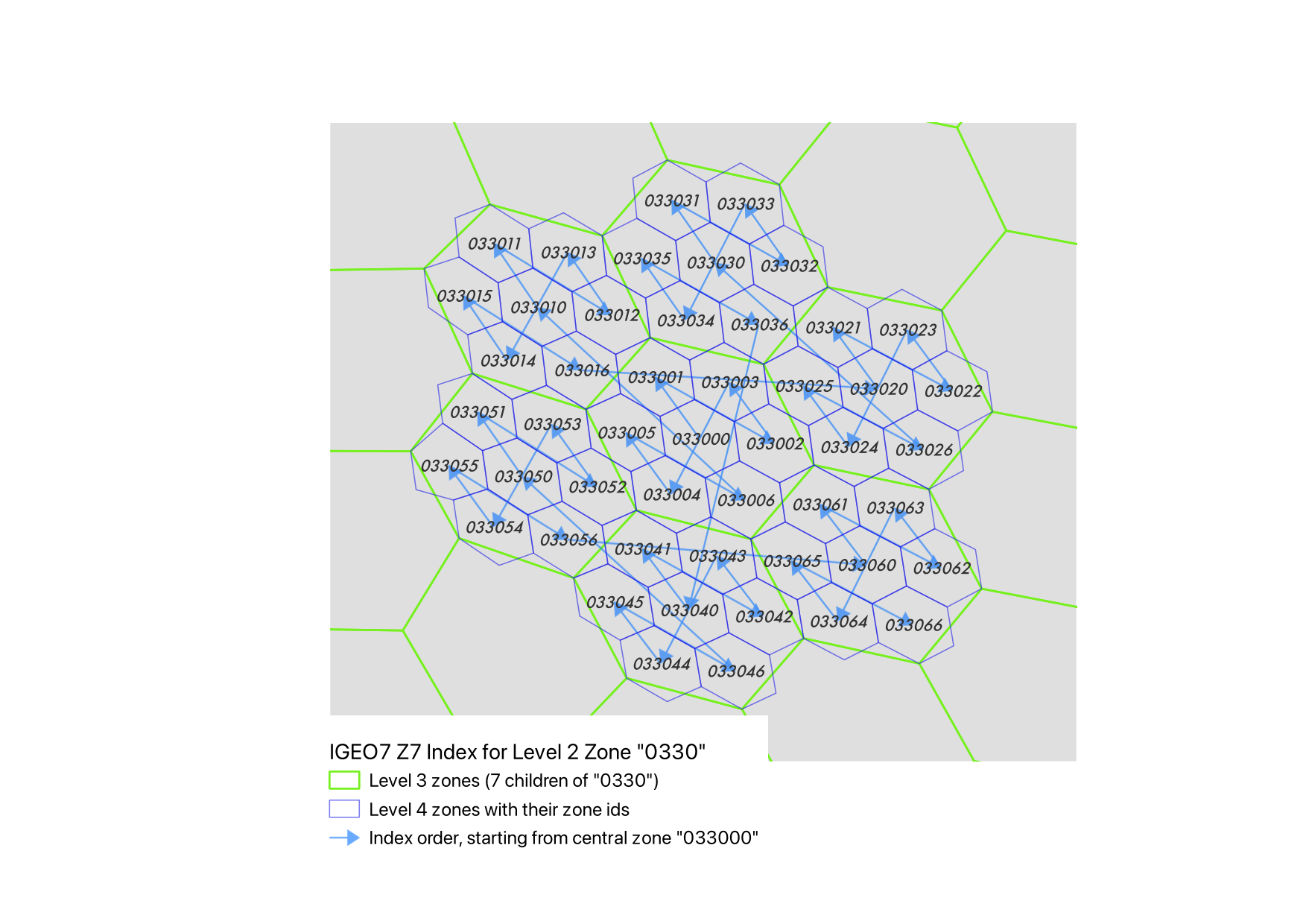

Z7 space-filling curve index order

  • Improves cache locality when processing large datasets in index order
  • Makes range scans on indexed database columns spatially coherent
  • Is analogous to the Hilbert curve used in many raster spatial indexing schemes

Digit 0: The Centre Cell​

The digit 0 always means "the child that contains the parent's centroid". This is a consistent orientation anchor: no matter which base cell or resolution you're at, digit 0 is always the spatial centre.

This means the path of all-zero digits (e.g., "080000...0") traces a straight line from the icosahedron vertex down to the finest resolution, always staying at the centre of each parent cell.

Comparison with H3 Indexing​

PropertyZ7 (IGEO7)H3
Index size64-bit integer64-bit integer
Base cell bits4 (values 0–11)7 (values 0–121)
Digit size3 bits (values 0–6, 7=sentinel)3 bits (values 0–6, 7=sentinel)
Max resolution2015
Digit encoding0=centre, 1–6=surrounding0=centre, 1–6=surrounding
String formatBB + up to 20 octal digits15-hex-char string

The indexing philosophy is nearly identical — both use 64-bit integers with 3-bit resolution digits and a sentinel value. The key differences are at the base cell level: Z7 has 12 pure-aperture-7 base cells; H3 has 122 mixed-aperture base cells.

Neighbourhood Traversal​

Finding neighbours requires Z7 arithmetic — specifically, Central Place Indexing (CPI) addition with carry propagation across base cell boundaries. This is implemented in IGEO7.jl and the C++ work by W.Renoud J.Shaw.
